Delay Lines Custom designed to your requirements.

standarddelaylinesProducing coaxial delay lines to exacting customer specifications is a highly-developed capability at EZ Form. Using our cable with its superior characteristics allows us to shape delay lines into almost any configuration required, and meet your most stringent electrical and mechanical specifications as well. Our standard delay lines (shown below) fit a wide range of needs and are available with a short delivery time. Should you need a special design or a custom electrical specification, our engineers will work with you to configure a delay line that satisfies your requirements.

Contact Us with your requirements for custom delay lines with special cable types, configurations, finishes, or electrical characteristics.

Cable Size Delay (ns) Part Number Height Max. Dimensions inches (mm) Diameter Max. Weight ounces (g)*see below
.086 5±0.5 EZ86DL5 .19 (4.83) 2.57 (65.3) 3.52 (99.8)

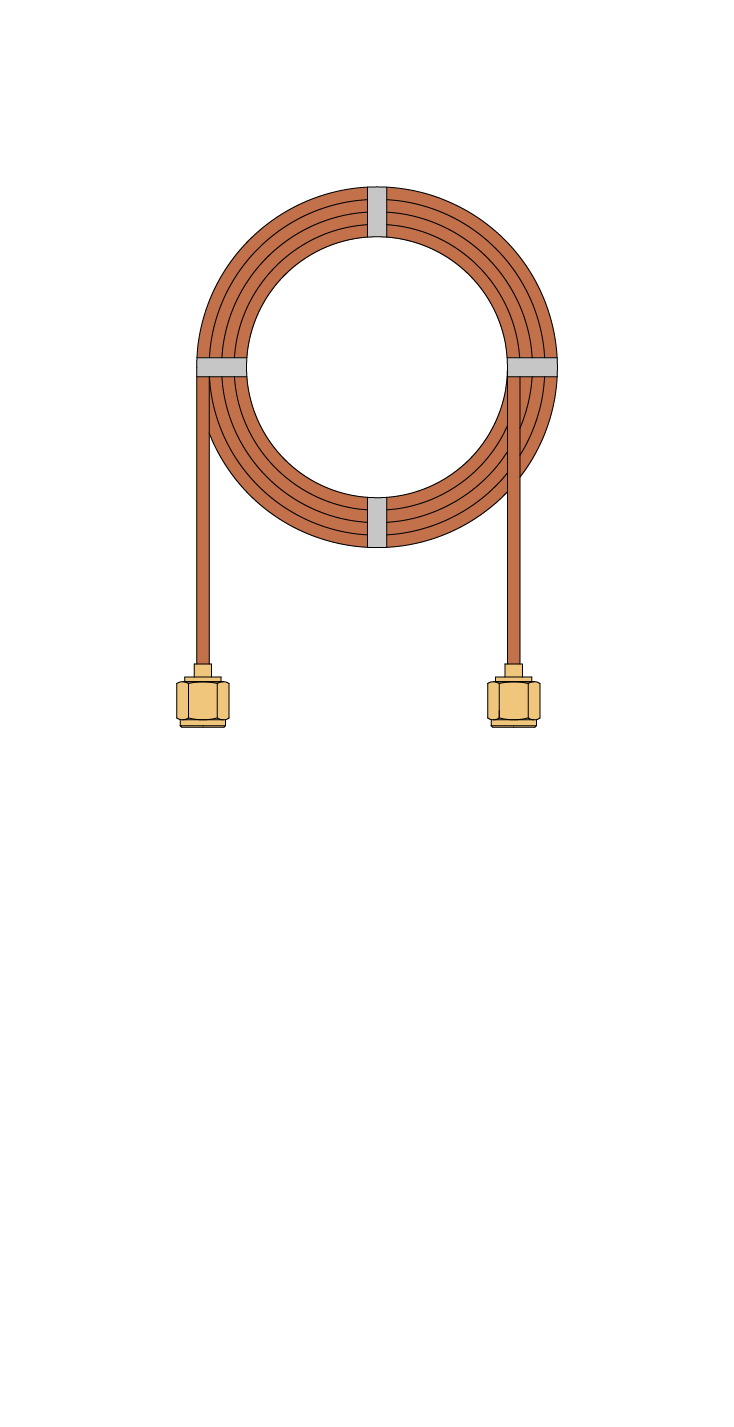

.086 10±0.5 EZ86DL10 .38 (9.65) 2.57 (65.3) 4.48 (127)
.086 25±0.5 EZ86DL25 1.42 (36.1) 2.38 (60.5) 7.20 (204)
.086 50±1.0 EZ86DL50 1.32 (33.5) 2.76 (70.1) 11.70 (331)
.086 100±1.0 EZ86DL100 1.70 (43.2) 3.14 (79.8) 19.50 (554)
.141 10±0.5 EZ141DL10 .90 (22.9) 2.60 (66.0) 6.72 (191)

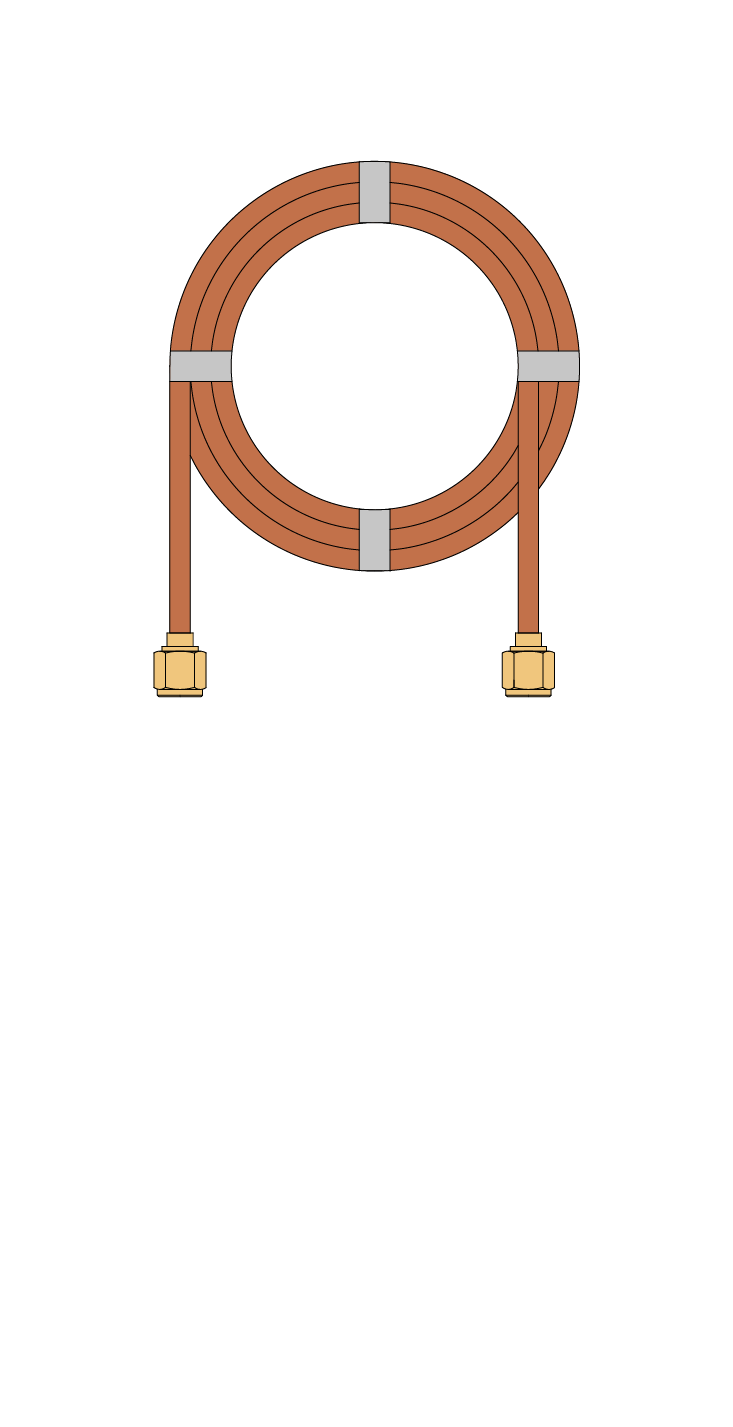

.141 25±0.5 EZ141DL25 1.35 (34.3) 2.90 (73.7) 12.80 (363)
.141 50±1.0 EZ141DL50 1.95 (49.5) 3.20 (81.3) 23.20 (658)
.141 100±1.0 EZ141DL100 3.00 (76.2) 3.50 (88.9) 44.00 (1247)

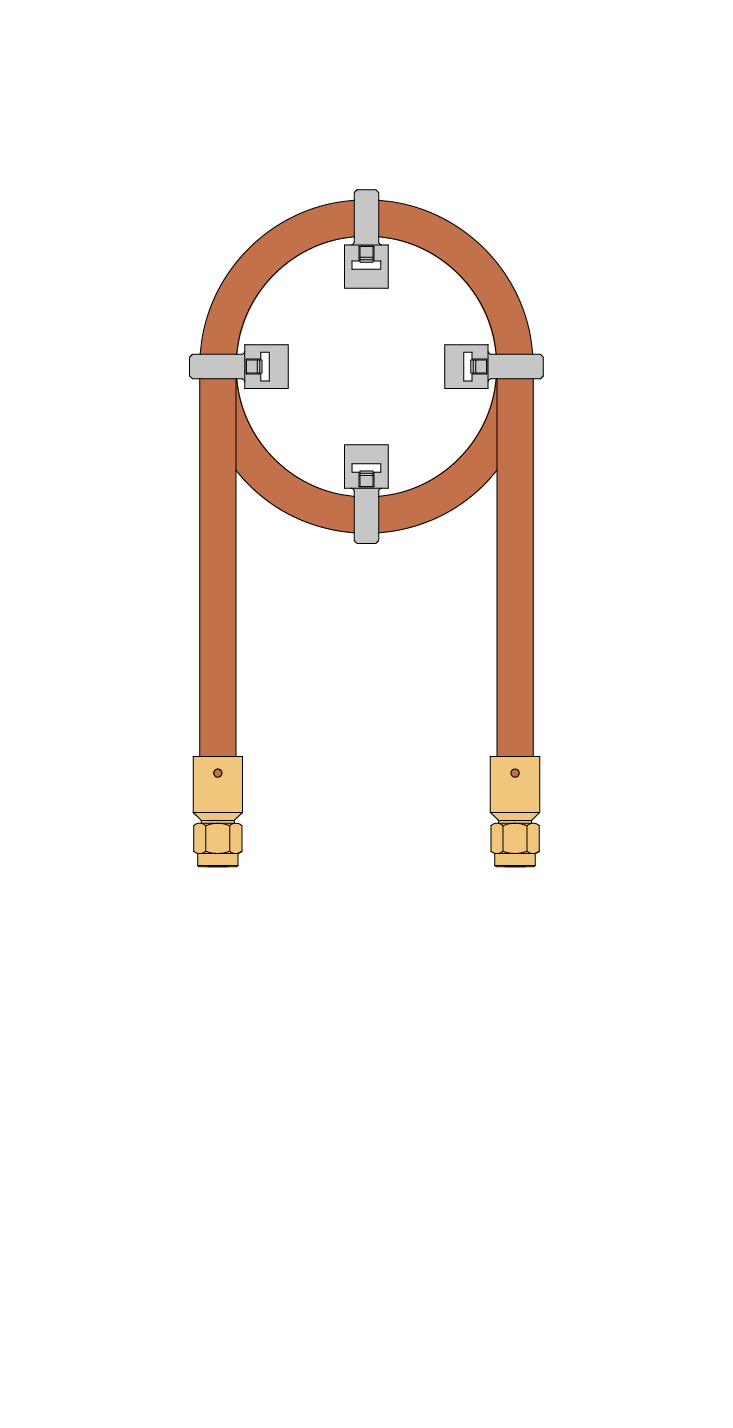

.250 5±0.5 EZ250DL5 1.65 (41.9) 2.55 (64.8) 8.80 (249)
.250 10±0.5 EZ250DL10 1.65 (41.9) 3.10 (78.7) 14.40 (408)

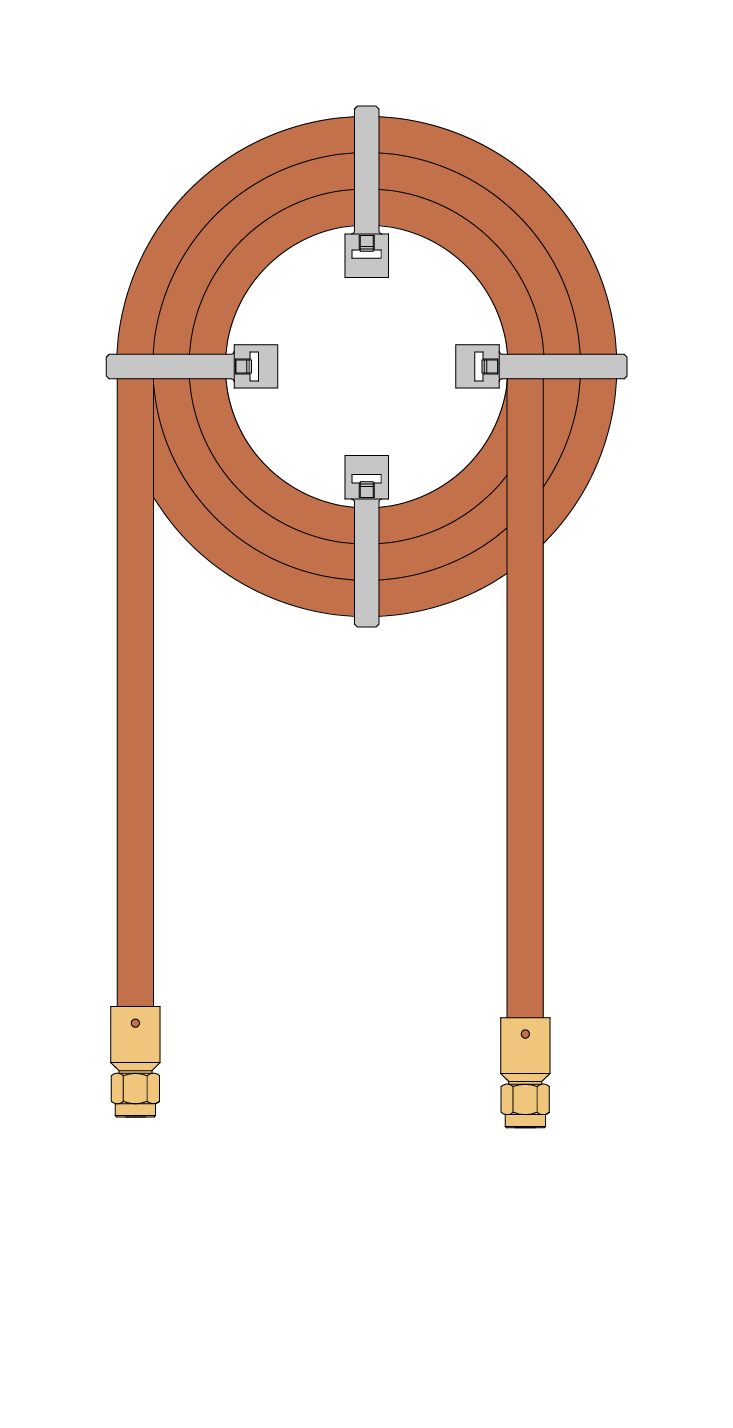

.250 25±0.5 EZ250DL25 2.20 (55.9) 3.65 (92.7) 32.00 (907)

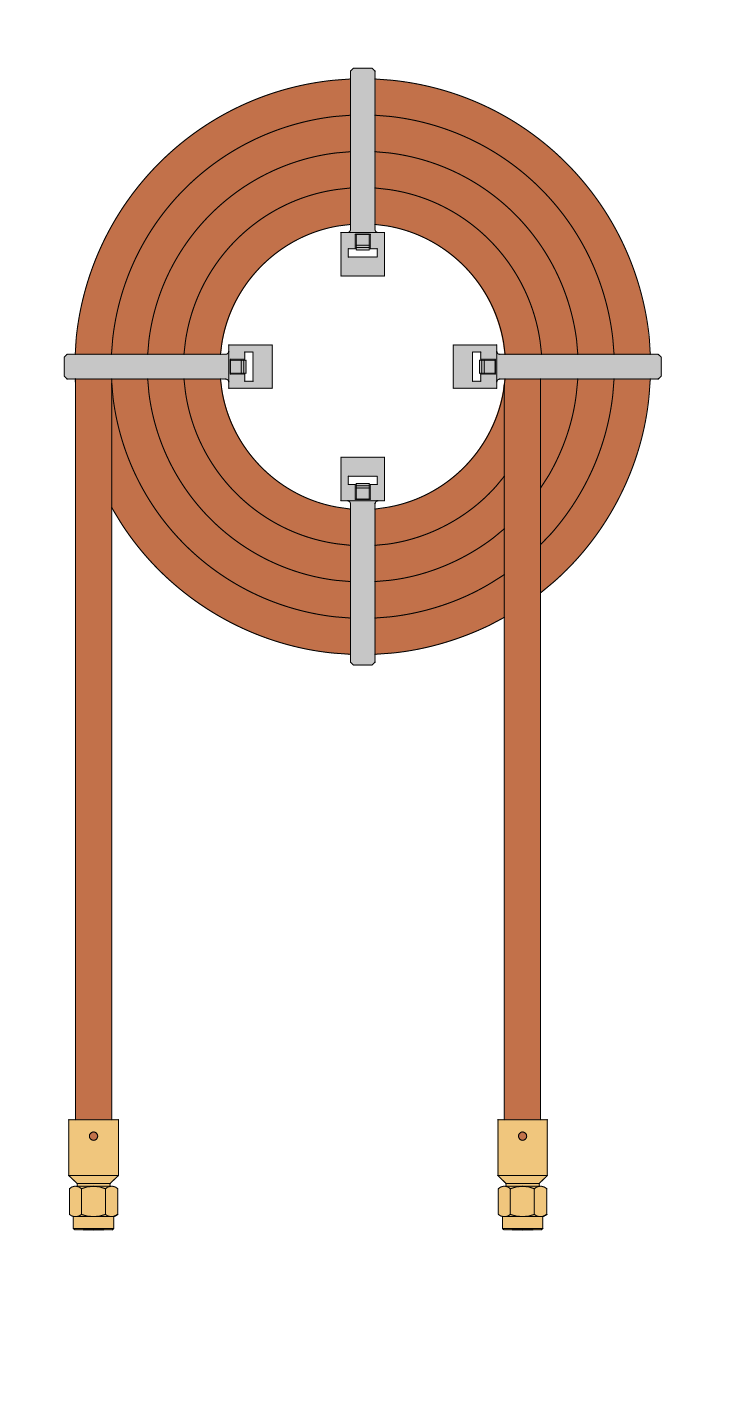

.250 50±1.0 EZ250DL50 3.03 (77.0) 4.20 (107) 61.60 (1746)

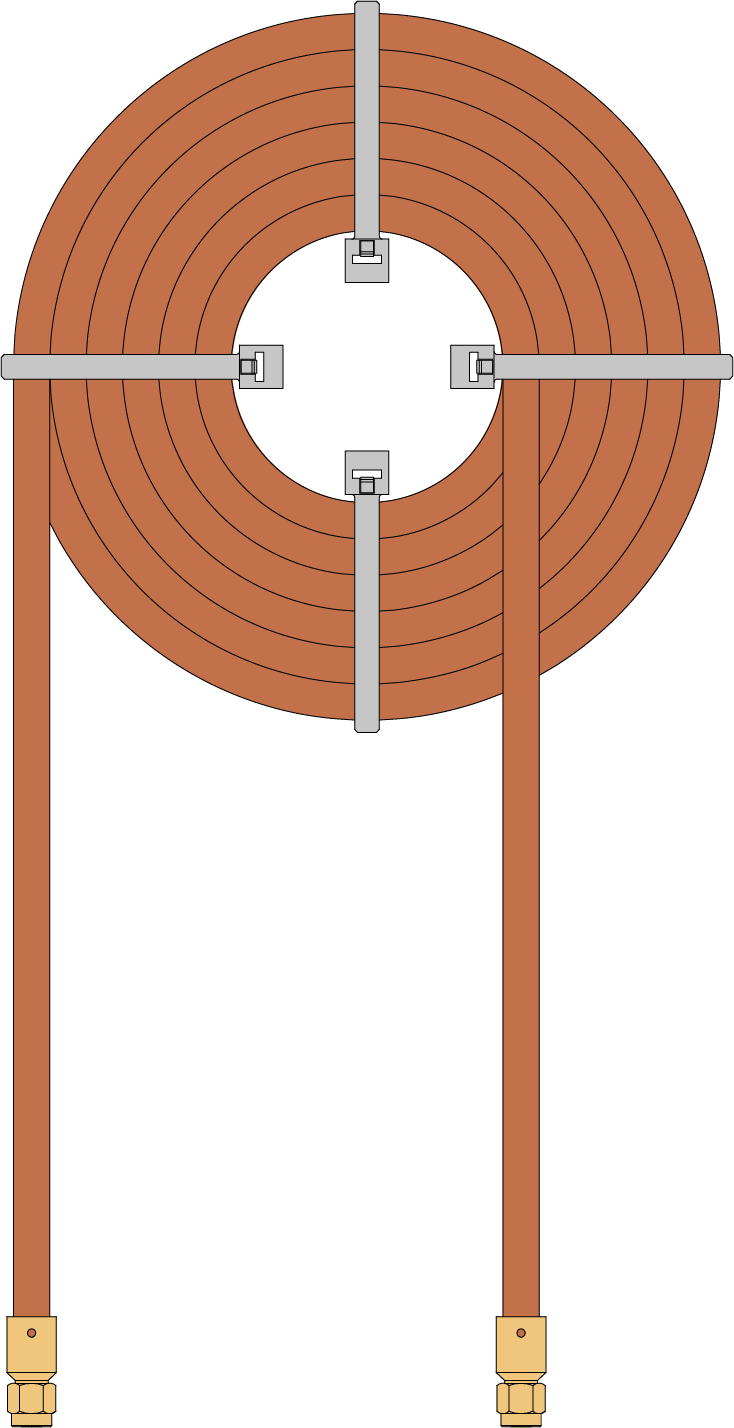

.250 100±1.0 EZ250DL100 3.58 (90.9) 5.30 (135) 120.00 (3402)

Delay tolerances shown above are standard; delay lines can be made with tolerances as tight as ±20 picoseconds on special order.
*For 40% weight savings, add “AL” to part number for delay lines made with EZ FormAL aluminum-jacketed cable.
