.116 Coaxial Cable – 50 Ω Semi-Rigid Silver-Plated Copper – Low-Loss, Non-Magnetic, Tape-Wrapped

EZ-118-SP

© EZ Form Cable Inc. All rights reserved.

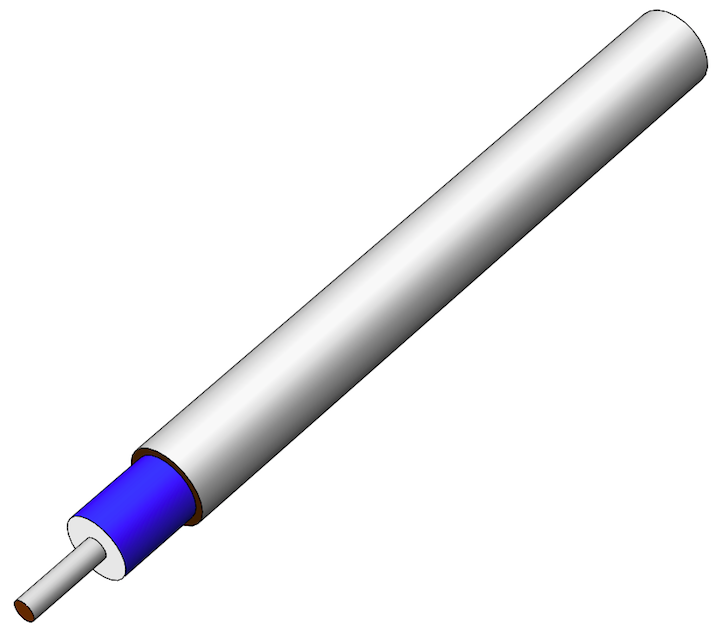

⌀.116" Semi-Rigid Silver-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Tape Dielectric, 50 Ω. Low-Loss, Non-Magnetic, Tape-Wrapped.

Specifications

Dimensions

  • Center Conductor Diameter
    0.0320 in
  • Dielectric Diameter
    0.0950 in
  • Outer Conductor Diameter
    0.1160 in

Materials

  • Center Conductor Material
    SPC
  • Dielectric Material
    PTFE Tape
  • Outer Conductor Material
    Copper
  • Outer Conductor Plating Material
    Silver
  • RoHS Compliant
    Yes

Mechanical Characteristics

  • Minimum Temperature
    −55 °C
  • Maximum Temperature
    +200 °C
  • Inside Bend Radius (Minimum)
    0.380 in
  • Weight
    2.30 lbs
    per 100 ft

Electrical Characteristics

  • Nominal Impedance
    50.0 Ω
  • Nominal Impedance Margin
    ±1.0 Ω
  • Velocity of Propagation
    80.00%
  • Shielding Effectiveness
    >165 db
  • Voltage Withstanding
    3500 VRMS
    @ 60 Hz
  • Continuous Working Voltage
    1400 VRMS
    max
  • Maximum Operating Frequency
    47 GHz
Attenuation
Frequencydb / 100 Ft Typical
0.5 GHz
8.2 db
1.0 GHz
12 db
5.0 GHz
29 db
10.0 GHz
41 db
18.0 GHz
59 db
26.5 GHz
70 db
40.0 GHz
90 db
Power
FrequencyWatts CW @ 20 °C (Max)
0.5 GHz
700 W
1.0 GHz
525 W
5.0 GHz
210 W
10.0 GHz
144 W
18.0 GHz
110 W
26.5 GHz
72 W
40.0 GHz
40 W

.116 Coaxial Cable – 50 Ω Semi-Rigid Silver-Plated Copper – Low-Loss, Non-Magnetic, Tape-Wrapped

EZ-118-SP

⌀.116" Semi-Rigid Silver-Plated Copper Outer Conductor, SPC Center Conductor, PTFE Tape Dielectric, 50 Ω. Low-Loss, Non-Magnetic, Tape-Wrapped.

feet
Add to Quote

EZ Form copper jacketed semi-rigid WP cables feature a tape-wrapped dielectric, that facilitates lower attenuation and higher operating temperatures when compared to solid PTFE semi-rigid cables.
