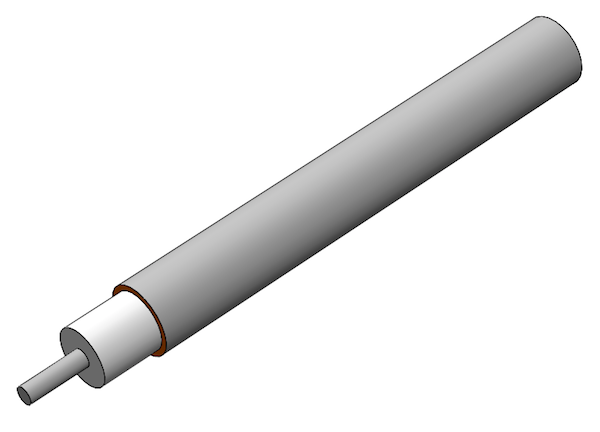

EZ-141-LA-SSCL


EZ Form stainless steel jacketed semi-rigid cables were developed for applications where low thermal heat transfer is required. Typical applications include cryogenic feed cables and RF ablation medical instruments. These cables are available with solid PTFE, microporous, and TF4™ dielectrics. Copper lined (CL) versions are available for non-cryogenic applications that require traditional electrical performance. Standard connectors can be attached to these cables by specifying tin plating on the outer conductor.

TF4™ is a registered trademark of Times Microwave Systems

Additional information unique to microporous dielectrics:

Phase Vs. Temperature

Attenuation Vs. Temperature





Clear
Inquiry (0)
SKU: N/A Category:
DIMENSIONS UNITS EZ-141-LA-SSCL
Rev -
Outer Conductor Diameter In 0.141
mm 3.58
Center Conductor Diameter In 0.0403
mm 1.02
Dielectric Diameter In 0.1175
mm 2.98
MATERIALS
Outer Conductor   Stainless Steel, Copper Lined
Outer Conductor Plating   None
Dielectric   LD PTFE
Center Conductor   SPC
RoHS Compliant   YES
MECHANICAL CHARACTERISTICS
Temp Range °C °C -55 to +200°C
Inside Bend Radius (Minimum) In 0.5
mm 12.7
Weight lbs / 100ft 3.25
kg / 100m 4.84
ELECTRICAL CHARACTERISTICS**
Nominal Impedance Ohms 50.0 ±1.0
Velocity of Propagation - 76.5%
Shielding Effectiveness db >165
Voltage Withstanding VRMS @ 60 Hz 5000
Continuous Working Voltage VRMS MAX 1900
Maximum Operating Frequency GHz 36
Attenuation
(db / 100 Ft Typical)
0.5 GHz 7.5
1.0 GHz 10.5
5.0 GHz 24.0
10.0 GHz 34.0
18.0 GHz 46.0
26.5 GHz 52.0
40.0 GHz N/A
50.0 GHz N/A
65.0 GHz N/A
90.0 GHz N/A
Power (Watts Cw
@ 20 °C, Maximum)
0.5 GHz 645
1.0 GHz 465
5.0 GHz 202
10.0 GHz 140
18.0 GHz 101
26.5 GHz 96
40.0 GHz N/A
50.0 GHz N/A
65.0 GHz N/A
90.0 GHz N/A
