EZ-34

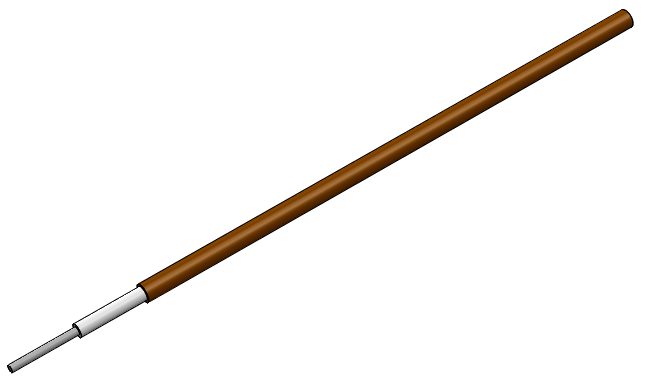

Copper jacketed semi-rigid cables manufactured by EZ Form offer 100% shielding and are easily formed into custom shapes using standard tooling. A wide variety of standard connectors are available for these cables.

To impede oxidation, we recommend keeping this product in its original packaging and storing it in a dry temperature controlled environment until consumed.

Clear
Inquiry (0)
SKU: N/A Category:
DIMENSIONS UNITS EZ-34
Rev A
Outer Conductor Diameter In 0.034
mm 0.86
Center Conductor Diameter In 0.008
mm 0.2
Dielectric Diameter In 0.0260
mm 0.6600
MATERIALS
Outer Conductor   Copper
Outer Conductor Plating   none
Dielectric   PTFE
Center Conductor   SPCW
RoHS Compliant   YES
MECHANICAL CHARACTERISTICS
Temp Range °C °C -55 to +100°C
Inside Bend Radius (Minimum) In 0.05
mm .050 (1.27)
Weight lbs / 100ft 0.26
kg / 100m 0.39
ELECTRICAL CHARACTERISTICS**
Nominal Impedance Ohms 50.0 ±1.0
Velocity of Propagation - 69.5%%
Shielding Effectiveness db >165
Voltage Withstanding VRMS @ 60 Hz 7500
Continuous Working Voltage VRMS MAX 3000
Maximum Operating Frequency GHz 153
Attenuation
(db / 100 Ft Typical)
0.5 GHz 32.3
1.0 GHz 46.0
5.0 GHz 106.0
10.0 GHz 153.8
18.0 GHz 211.5
26.5 GHz 262.7
40.0 GHz 331.7
50.0 GHz 377.2
65.0 GHz 439.7
90.0 GHz 533.6
Power (Watts Cw
@ 20 °C, Maximum)
0.5 GHz 14
1.0 GHz 10
5.0 GHz N/A
10.0 GHz 3
18.0 GHz 2
26.5 GHz N/A
40.0 GHz N/A
50.0 GHz N/A
65.0 GHz N/A
90.0 GHz N/A
